Application process

AR-Application process : Application process

Définition
Diagrammes
Impacts
Administration

Description

Alias
Stéréotype		Raccourci

Diagrammes

AR-beh - Meta modèle simplifié illustré

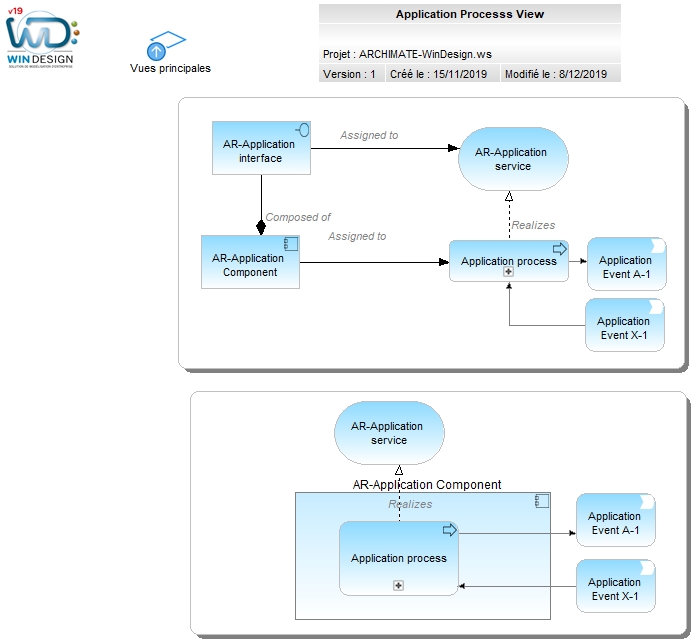

AR-APP - Application Processs View

.

Impacts

ARCHIMATE
ASSIGNMENT
Assigned from	Application Component
ACCESS
Accesses	Data Object
SERVING
Served by	Technology Service
REALIZATION
Realizes	AR-Application service Application Service

Echanges - Flux

Entrées

Application Event X-1

Application Event

Sorties

Application Event A-1

Liens standard
Référent dans	ARCHIMATE INTRO

Administration

Auteur	BC	Validé	Non
Date de création	15/11/2019	Date de modification	02/12/2019
